Oliver Tale-Yazdi e1c033ebe1 Use Message Queue as DMP and XCMP dispatch queue (#1246)
(imported from https://github.com/paritytech/cumulus/pull/2157)

## Changes

This MR refactores the XCMP, Parachains System and DMP pallets to use
the [MessageQueue](https://github.com/paritytech/substrate/pull/12485)
for delayed execution of incoming messages. The DMP pallet is entirely
replaced by the MQ and thereby removed. This allows for PoV-bounded
execution and resolves a number of issues that stem from the current
work-around.

All System Parachains adopt this change.
The most important changes are in `primitives/core/src/lib.rs`,
`parachains/common/src/process_xcm_message.rs`,
`pallets/parachain-system/src/lib.rs`, `pallets/xcmp-queue/src/lib.rs`
and the runtime configs.

### DMP Queue Pallet

The pallet got removed and its logic refactored into parachain-system.
Overweight message management can be done directly through the MQ
pallet.

Final undeployment migrations are provided by
`cumulus_pallet_dmp_queue::UndeployDmpQueue` and `DeleteDmpQueue` that
can be configured with an aux config trait like:

```rust
parameter_types! {
	pub const DmpQueuePalletName: &'static str = \"DmpQueue\" < CHANGE ME;
	pub const RelayOrigin: AggregateMessageOrigin = AggregateMessageOrigin::Parent;
}

impl cumulus_pallet_dmp_queue::MigrationConfig for Runtime {
	type PalletName = DmpQueuePalletName;
	type DmpHandler = frame_support::traits::EnqueueWithOrigin<MessageQueue, RelayOrigin>;
	type DbWeight = <Runtime as frame_system::Config>::DbWeight;
}

// And adding them to your Migrations tuple:
pub type Migrations = (
	...
	cumulus_pallet_dmp_queue::UndeployDmpQueue<Runtime>,
	cumulus_pallet_dmp_queue::DeleteDmpQueue<Runtime>,
);
```

### XCMP Queue pallet

Removed all dispatch queue functionality. Incoming XCMP messages are now
either: Immediately handled if they are Signals, enqueued into the MQ
pallet otherwise.

New config items for the XCMP queue pallet:
```rust
/// The actual queue implementation that retains the messages for later processing.
type XcmpQueue: EnqueueMessage<ParaId>;

/// How a XCM over HRMP from a sibling parachain should be processed.
type XcmpProcessor: ProcessMessage<Origin = ParaId>;

/// The maximal number of suspended XCMP channels at the same time.
#[pallet::constant]
type MaxInboundSuspended: Get<u32>;
```

How to configure those:

```rust
// Use the MessageQueue pallet to store messages for later processing. The `TransformOrigin` is needed since
// the MQ pallet itself operators on `AggregateMessageOrigin` but we want to enqueue `ParaId`s.
type XcmpQueue = TransformOrigin<MessageQueue, AggregateMessageOrigin, ParaId, ParaIdToSibling>;

// Process XCMP messages from siblings. This is type-safe to only accept `ParaId`s. They will be dispatched
// with origin `Junction::Sibling(…)`.
type XcmpProcessor = ProcessFromSibling<
	ProcessXcmMessage<
		AggregateMessageOrigin,
		xcm_executor::XcmExecutor<xcm_config::XcmConfig>,
		RuntimeCall,
	>,
>;

// Not really important what to choose here. Just something larger than the maximal number of channels.
type MaxInboundSuspended = sp_core::ConstU32<1_000>;
```

The `InboundXcmpStatus` storage item was replaced by
`InboundXcmpSuspended` since it now only tracks inbound queue suspension
and no message indices anymore.

Now only sends the most recent channel `Signals`, as all prio ones are
out-dated anyway.

### Parachain System pallet

For `DMP` messages instead of forwarding them to the `DMP` pallet, it
now pushes them to the configured `DmpQueue`. The message processing
which was triggered in `set_validation_data` is now being done by the MQ
pallet `on_initialize`.

XCMP messages are still handed off to the `XcmpMessageHandler`
(XCMP-Queue pallet) - no change here.

New config items for the parachain system pallet:
```rust
/// Queues inbound downward messages for delayed processing.
///
/// Analogous to the `XcmpQueue` of the XCMP queue pallet.
type DmpQueue: EnqueueMessage<AggregateMessageOrigin>;
```

How to configure:
```rust
/// Use the MQ pallet to store DMP messages for delayed processing.
type DmpQueue = MessageQueue;
```

## Message Flow

The flow of messages on the parachain side. Messages come in from the
left via the `Validation Data` and finally end up at the `Xcm Executor`
on the right.

![Untitled
(1)](https://github.com/paritytech/cumulus/assets/10380170/6cf8b377-88c9-4aed-96df-baace266e04d)

## Further changes

- Bumped the default suspension, drop and resume thresholds in
`QueueConfigData::default()`.
- `XcmpQueue::{suspend_xcm_execution, resume_xcm_execution}` errors when
they would be a noop.
- Properly validate the `QueueConfigData` before setting it.
- Marked weight files as auto-generated so they wont auto-expand in the
MR files view.
- Move the `hypothetical` asserts to `frame_support` under the name
`experimental_hypothetically`

Questions:
- [ ] What about the ugly `#[cfg(feature = \"runtime-benchmarks\")]` in
the runtimes? Not sure how to best fix. Just having them like this makes
tests fail that rely on the real message processor when the feature is
enabled.
- [ ] Need a good weight for `MessageQueueServiceWeight`. The scheduler
already takes 80% so I put it to 10% but that is quite low.

TODO:
- [x] Remove c&p code after
https://github.com/paritytech/polkadot/pull/6271
- [x] Use `HandleMessage` once it is public in Substrate
- [x] fix `runtime-benchmarks` feature
https://github.com/paritytech/polkadot/pull/6966
- [x] Benchmarks
- [x] Tests
- [ ] Migrate `InboundXcmpStatus` to `InboundXcmpSuspended`
- [x] Possibly cleanup Migrations (DMP+XCMP)
- [x] optional: create `TransformProcessMessageOrigin` in Substrate and
replace `ProcessFromSibling`
- [ ] Rerun weights on ref HW

---------

Signed-off-by: Oliver Tale-Yazdi <oliver.tale-yazdi@parity.io>
Co-authored-by: Liam Aharon <liam.aharon@hotmail.com>
Co-authored-by: joe petrowski <25483142+joepetrowski@users.noreply.github.com>
Co-authored-by: Kian Paimani <5588131+kianenigma@users.noreply.github.com>
Co-authored-by: command-bot <>
2023-11-02 15:31:38 +01:00
..
bridge-hub-kusama
Use Message Queue as DMP and XCMP dispatch queue (#1246)
2023-11-02 15:31:38 +01:00
bridge-hub-polkadot
Use Message Queue as DMP and XCMP dispatch queue (#1246)
2023-11-02 15:31:38 +01:00
bridge-hub-rococo
Use Message Queue as DMP and XCMP dispatch queue (#1246)
2023-11-02 15:31:38 +01:00
bridge-hub-westend
Use Message Queue as DMP and XCMP dispatch queue (#1246)
2023-11-02 15:31:38 +01:00
docs
BridgeHubKusama - initial setup - (chain_spec + basic runtime without any bridging pallets) (#1764)
2022-12-02 14:06:39 +01:00
test-utils
Use Message Queue as DMP and XCMP dispatch queue (#1246)
2023-11-02 15:31:38 +01:00
README.md
[testnet] Add AssetHubRococo <-> AssetHubWestend asset bridging support (#1967)
2023-11-02 00:39:49 +01:00

README.md

Bridge-hub Parachains

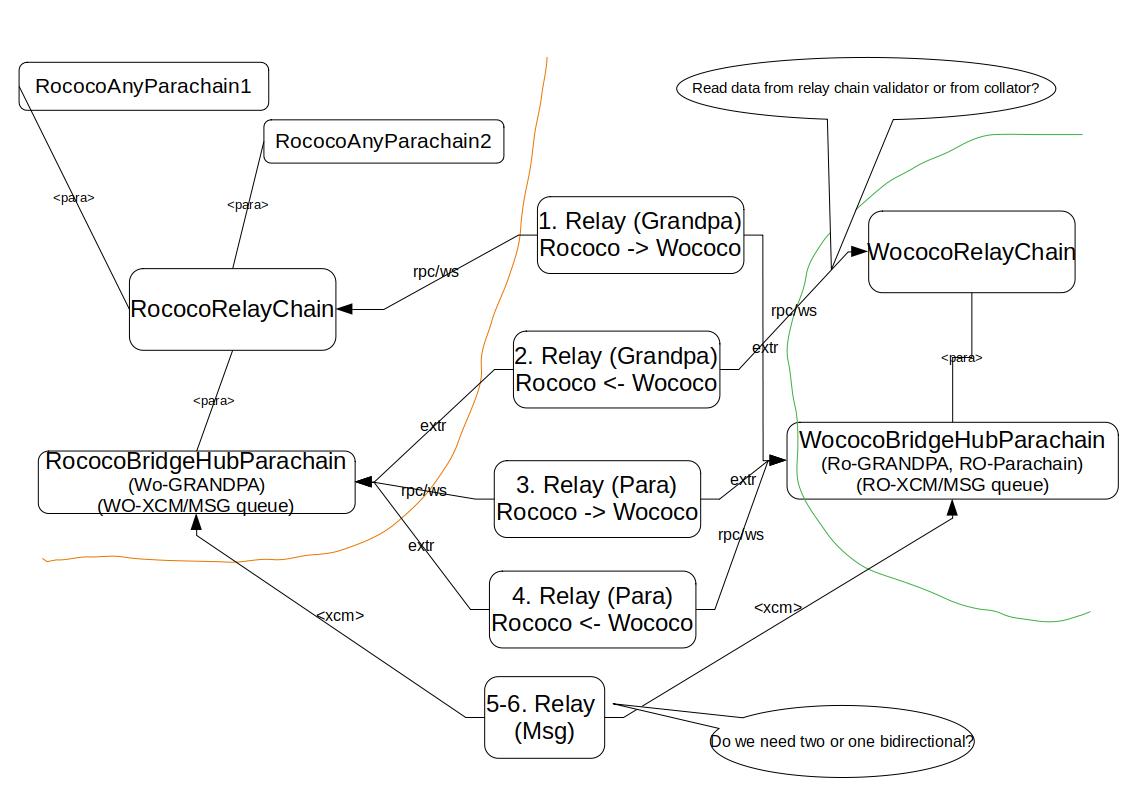

BridgeHub(s) are system parachains that will house trustless bridges from the local ecosystem to others. The current trustless bridges planned for the BridgeHub(s) are:

  • BridgeHubPolkadot system parachain:
    1. Polkadot <-> Kusama bridge
    2. Polkadot <-> Ethereum bridge (Snowbridge)
  • BridgeHubKusama system parachain:
    1. Kusama <-> Polkadot bridge
    2. Kusama <-> Ethereum bridge The high-level responsibilities of each bridge living on BridgeHub:
  • sync finality proofs between relay chains (or equivalent)
  • sync finality proofs between BridgeHub parachains
  • pass (XCM) messages between different BridgeHub parachains

Requirements for local run/testing

# Prepare empty directory for testing
mkdir -p ~/local_bridge_testing/bin
mkdir -p ~/local_bridge_testing/logs

---
# 1. Install zombienet
Go to: https://github.com/paritytech/zombienet/releases
Copy the apropriate binary (zombienet-linux) from the latest release to ~/local_bridge_testing/bin


---
# 2. Build polkadot binary

# If you want to test Kusama/Polkadot bridge, we need "sudo pallet + fast-runtime",
# so we need to use sudofi in polkadot directory.
#
# Install sudofi: (skip if already installed)
# cd <somewhere-outside-polkadot-sdk-git-repo-dir>
# git clone https://github.com/paritytech/parachain-utils.git
# cd parachain-utils # -> this is <parachain-utils-git-repo-dir>
# cargo build --release --bin sudofi
#
# cd <polkadot-sdk-git-repo-dir>/polkadot
# <parachain-utils-git-repo-dir>/target/release/sudofi

cd <polkadot-sdk-git-repo-dir>
cargo build --release --features fast-runtime --bin polkadot
cp target/release/polkadot ~/local_bridge_testing/bin/polkadot

cargo build --release --features fast-runtime --bin polkadot-prepare-worker
cp target/release/polkadot-prepare-worker ~/local_bridge_testing/bin/polkadot-prepare-worker

cargo build --release --features fast-runtime --bin polkadot-execute-worker
cp target/release/polkadot-execute-worker ~/local_bridge_testing/bin/polkadot-execute-worker


---
# 3. Build substrate-relay binary
git clone https://github.com/paritytech/parity-bridges-common.git
cd parity-bridges-common

# checkout desired branch or use master:
# git checkout -b master --track origin/master
# `polkadot-staging` (recommended) is stabilized and compatible for Cumulus releases
# `master` is latest development
git checkout -b polkadot-staging --track origin/polkadot-staging

cargo build --release -p substrate-relay
cp target/release/substrate-relay ~/local_bridge_testing/bin/substrate-relay


---
# 4. Build cumulus polkadot-parachain binary
cd <polkadot-sdk-git-repo-dir>

cargo build --release -p polkadot-parachain-bin
cp target/release/polkadot-parachain ~/local_bridge_testing/bin/polkadot-parachain
cp target/release/polkadot-parachain ~/local_bridge_testing/bin/polkadot-parachain-asset-hub

How to test local Rococo <-> Wococo bridge

Run Rococo/Wococo chains with zombienet

cd <polkadot-sdk-git-repo-dir>

# Rococo + BridgeHubRococo + AssetHub for Rococo (mirroring Kusama)
POLKADOT_BINARY_PATH=~/local_bridge_testing/bin/polkadot \
POLKADOT_PARACHAIN_BINARY_PATH=~/local_bridge_testing/bin/polkadot-parachain \
POLKADOT_PARACHAIN_BINARY_PATH_FOR_ASSET_HUB_ROCOCO=~/local_bridge_testing/bin/polkadot-parachain-asset-hub \
	~/local_bridge_testing/bin/zombienet-linux --provider native spawn ./cumulus/zombienet/bridge-hubs/bridge_hub_rococo_local_network.toml

cd <polkadot-sdk-git-repo-dir>

# Wococo + BridgeHubWococo + AssetHub for Wococo (mirroring Polkadot)
POLKADOT_BINARY_PATH=~/local_bridge_testing/bin/polkadot \
POLKADOT_PARACHAIN_BINARY_PATH=~/local_bridge_testing/bin/polkadot-parachain \
POLKADOT_PARACHAIN_BINARY_PATH_FOR_ASSET_HUB_WOCOCO=~/local_bridge_testing/bin/polkadot-parachain-asset-hub \
	~/local_bridge_testing/bin/zombienet-linux --provider native spawn ./cumulus/zombienet/bridge-hubs/bridge_hub_wococo_local_network.toml

Init bridge and run relayer between BridgeHubRococo and BridgeHubWococo

Accounts of BridgeHub parachains:

  • Bob is pallet owner of all bridge pallets

Run with script

cd <polkadot-sdk-git-repo-dir>

./cumulus/scripts/bridges_rococo_wococo.sh run-relay

Check relay-chain headers relaying:

Check parachain headers relaying:

Initialize configuration for transfer asset over bridge (ROCs/WOCs)

This initialization does several things:

  • creates ForeignAssets for wrappedROCs/wrappedWOCs
  • drips SA for AssetHubRococo on AssetHubWococo (and vice versa) which holds reserved assets on source chains
cd <polkadot-sdk-git-repo-dir>

./cumulus/scripts/bridges_rococo_wococo.sh init-asset-hub-rococo-local
./cumulus/scripts/bridges_rococo_wococo.sh init-bridge-hub-rococo-local
./cumulus/scripts/bridges_rococo_wococo.sh init-asset-hub-wococo-local
./cumulus/scripts/bridges_rococo_wococo.sh init-bridge-hub-wococo-local

Send messages - transfer asset over bridge (ROCs/WOCs)

Do (asset) transfers:

cd <polkadot-sdk-git-repo-dir>

# ROCs from Rococo's Asset Hub to Wococo's.
./cumulus/scripts/bridges_rococo_wococo.sh reserve-transfer-assets-from-asset-hub-rococo-local

cd <polkadot-sdk-git-repo-dir>

# WOCs from Wococo's Asset Hub to Rococo's.
./cumulus/scripts/bridges_rococo_wococo.sh reserve-transfer-assets-from-asset-hub-wococo-local

Claim relayer's rewards on BridgeHubRococo and BridgeHubWococo

Accounts of BridgeHub parachains:

  • //Charlie is relayer account on BridgeHubRococo
  • //Charlie is relayer account on BridgeHubWococo
cd <polkadot-sdk-git-repo-dir>

# Claim rewards on BridgeHubWococo:
./cumulus/scripts/bridges_rococo_wococo.sh claim-rewards-bridge-hub-rococo-local

# Claim rewards on BridgeHubWococo:
./cumulus/scripts/bridges_rococo_wococo.sh claim-rewards-bridge-hub-wococo-local

How to test local Rococo <-> Westend bridge

Run Rococo/Westend chains with zombienet

cd <polkadot-sdk-git-repo-dir>

# Rococo + BridgeHubRococo + AssetHub for Rococo (mirroring Kusama)
POLKADOT_BINARY_PATH=~/local_bridge_testing/bin/polkadot \
POLKADOT_PARACHAIN_BINARY_PATH=~/local_bridge_testing/bin/polkadot-parachain \
POLKADOT_PARACHAIN_BINARY_PATH_FOR_ASSET_HUB_ROCOCO=~/local_bridge_testing/bin/polkadot-parachain-asset-hub \
	~/local_bridge_testing/bin/zombienet-linux --provider native spawn ./cumulus/zombienet/bridge-hubs/bridge_hub_rococo_local_network.toml

cd <polkadot-sdk-git-repo-dir>

# Westend + BridgeHubWestend + AssetHub for Westend (mirroring Polkadot)
POLKADOT_BINARY_PATH=~/local_bridge_testing/bin/polkadot \
POLKADOT_PARACHAIN_BINARY_PATH=~/local_bridge_testing/bin/polkadot-parachain \
POLKADOT_PARACHAIN_BINARY_PATH_FOR_ASSET_HUB_WESTEND=~/local_bridge_testing/bin/polkadot-parachain-asset-hub \
	~/local_bridge_testing/bin/zombienet-linux --provider native spawn ./cumulus/zombienet/bridge-hubs/bridge_hub_westend_local_network.toml

Init bridge and run relayer between BridgeHubRococo and BridgeHubWestend

Accounts of BridgeHub parachains:

  • Bob is pallet owner of all bridge pallets

Run with script

cd <polkadot-sdk-git-repo-dir>

./cumulus/scripts/bridges_rococo_westend.sh run-relay

Check relay-chain headers relaying:

Check parachain headers relaying:

Initialize configuration for transfer asset over bridge (ROCs/WNDs)

This initialization does several things:

  • creates ForeignAssets for wrappedROCs/wrappedWNDs
  • drips SA for AssetHubRococo on AssetHubWestend (and vice versa) which holds reserved assets on source chains
cd <polkadot-sdk-git-repo-dir>

./cumulus/scripts/bridges_rococo_westend.sh init-asset-hub-rococo-local
./cumulus/scripts/bridges_rococo_westend.sh init-bridge-hub-rococo-local
./cumulus/scripts/bridges_rococo_westend.sh init-asset-hub-westend-local
./cumulus/scripts/bridges_rococo_westend.sh init-bridge-hub-westend-local

Send messages - transfer asset over bridge (ROCs/WNDs)

Do (asset) transfers:

cd <polkadot-sdk-git-repo-dir>

# ROCs from Rococo's Asset Hub to Westend's.
./cumulus/scripts/bridges_rococo_westend.sh reserve-transfer-assets-from-asset-hub-rococo-local

cd <polkadot-sdk-git-repo-dir>

# WNDs from Westend's Asset Hub to Rococo's.
./cumulus/scripts/bridges_rococo_westend.sh reserve-transfer-assets-from-asset-hub-westend-local

Claim relayer's rewards on BridgeHubRococo and BridgeHubWestend

Accounts of BridgeHub parachains:

  • //Charlie is relayer account on BridgeHubRococo
  • //Charlie is relayer account on BridgeHubWestend
cd <polkadot-sdk-git-repo-dir>

# Claim rewards on BridgeHubWestend:
./cumulus/scripts/bridges_rococo_westend.sh claim-rewards-bridge-hub-rococo-local

# Claim rewards on BridgeHubWestend:
./cumulus/scripts/bridges_rococo_westend.sh claim-rewards-bridge-hub-westend-local

How to test local BridgeHubKusama/BridgeHubPolkadot

TODO: see # !!! READ HERE above

Reference in New Issue View Git Blame Copy Permalink
