Michal Kucharczyk f910a15c1c GenesisConfig presets for runtime (#2714)
The runtime now can provide a number of predefined presets of
`RuntimeGenesisConfig` struct. This presets are intended to be used in
different deployments, e.g.: `local`, `staging`, etc, and should be
included into the corresponding chain-specs.

Having `GenesisConfig` presets in runtime allows to fully decouple node
from runtime types (the problem is described in #1984).

**Summary of changes:**
- The `GenesisBuilder` API was adjusted to enable this functionality
(and provide better naming - #150):
   ```rust
    fn preset_names() -> Vec<PresetId>;
fn get_preset(id: Option<PresetId>) -> Option<serde_json::Value>;
//`None` means default
    fn build_state(value: serde_json::Value);
    pub struct PresetId(Vec<u8>);
   ```

- **Breaking change**: Old `create_default_config` method was removed,
`build_config` was renamed to `build_state`. As a consequence a node
won't be able to interact with genesis config for older runtimes. The
cleanup was made for sake of API simplicity. Also IMO maintaining
compatibility with old API is not so crucial.
- Reference implementation was provided for `substrate-test-runtime` and
`rococo` runtimes. For rococo new
[`genesis_configs_presets`](https://github.com/paritytech/polkadot-sdk/blob/3b41d66b97c5ff0ec4a1989da5ffd8b9f3f588e3/polkadot/runtime/rococo/src/genesis_config_presets.rs#L530)
module was added and is used in `GenesisBuilder`
[_presets-related_](https://github.com/paritytech/polkadot-sdk/blob/3b41d66b97c5ff0ec4a1989da5ffd8b9f3f588e3/polkadot/runtime/rococo/src/lib.rs#L2462-L2485)
methods.

- The `chain-spec-builder` util was also improved and allows to
([_doc_](https://github.com/paritytech/polkadot-sdk/blob/3b41d66b97c5ff0ec4a1989da5ffd8b9f3f588e3/substrate/bin/utils/chain-spec-builder/src/lib.rs#L19)):
   - list presets provided by given runtime (`list-presets`),
- display preset or default config provided by the runtime
(`display-preset`),
   - build chain-spec using named preset (`create ... named-preset`),


- The `ChainSpecBuilder` is extended with
[`with_genesis_config_preset_name`](https://github.com/paritytech/polkadot-sdk/blob/3b41d66b97c5ff0ec4a1989da5ffd8b9f3f588e3/substrate/client/chain-spec/src/chain_spec.rs#L447)
method which allows to build chain-spec using named preset provided by
the runtime. Sample usage on the node side
[here](https://github.com/paritytech/polkadot-sdk/blob/2caffaae803e08a3d5b46c860e8016da023ff4ce/polkadot/node/service/src/chain_spec.rs#L404).

Implementation of #1984.
fixes: #150
part of: #25

---------

Co-authored-by: Sebastian Kunert <skunert49@gmail.com>
Co-authored-by: Kian Paimani <5588131+kianenigma@users.noreply.github.com>
Co-authored-by: Oliver Tale-Yazdi <oliver.tale-yazdi@parity.io>
2024-04-04 18:30:54 +00:00
..
bridge-hub-rococo
GenesisConfig presets for runtime (#2714)
2024-04-04 18:30:54 +00:00
bridge-hub-westend
GenesisConfig presets for runtime (#2714)
2024-04-04 18:30:54 +00:00
common
Use 0.1.0 as minimum version for crates (#3941)
2024-04-04 09:26:53 +00:00
docs
BridgeHubKusama - initial setup - (chain_spec + basic runtime without any bridging pallets) (#1764)
2022-12-02 14:06:39 +01:00
test-utils
Snowbridge - Test pallet order (#3381)
2024-02-21 14:48:40 +00:00
README.md
Bridge zombienet tests - move all test scripts to the same folder (#3333)
2024-02-15 12:56:58 +00:00

README.md

Bridge-hub Parachains

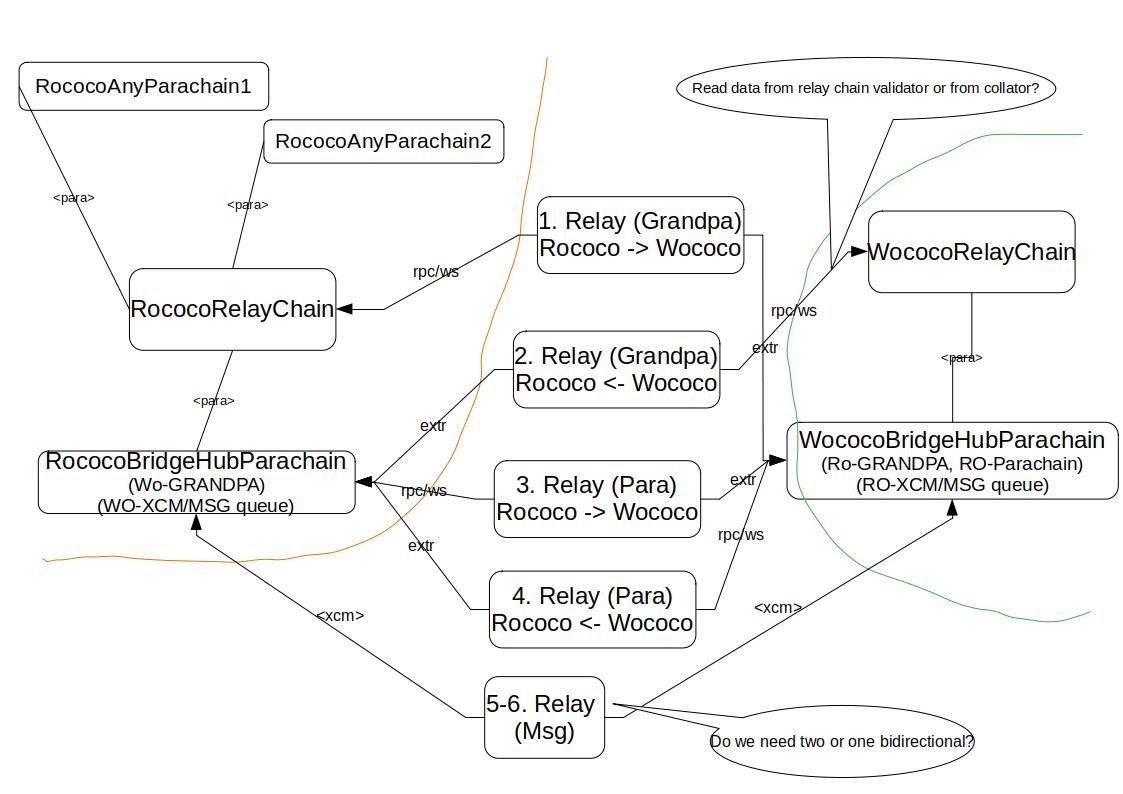

BridgeHub(s) are system parachains that will house trustless bridges from the local ecosystem to others. The current trustless bridges planned for the BridgeHub(s) are:

  • BridgeHubPolkadot system parachain:
    1. Polkadot <-> Kusama bridge
    2. Polkadot <-> Ethereum bridge (Snowbridge)
  • BridgeHubKusama system parachain:
    1. Kusama <-> Polkadot bridge
    2. Kusama <-> Ethereum bridge The high-level responsibilities of each bridge living on BridgeHub:
  • sync finality proofs between relay chains (or equivalent)
  • sync finality proofs between BridgeHub parachains
  • pass (XCM) messages between different BridgeHub parachains

Requirements for local run/testing

# Prepare empty directory for testing
mkdir -p ~/local_bridge_testing/bin
mkdir -p ~/local_bridge_testing/logs

---
# 1. Install zombienet
Go to: https://github.com/paritytech/zombienet/releases
Copy the apropriate binary (zombienet-linux) from the latest release to ~/local_bridge_testing/bin


---
# 2. Build polkadot binary

We need polkadot binary with "fast-runtime" feature:

cd <polkadot-sdk-git-repo-dir>
cargo build --release --features fast-runtime --bin polkadot
cp target/release/polkadot ~/local_bridge_testing/bin/polkadot

cargo build --release --features fast-runtime --bin polkadot-prepare-worker
cp target/release/polkadot-prepare-worker ~/local_bridge_testing/bin/polkadot-prepare-worker

cargo build --release --features fast-runtime --bin polkadot-execute-worker
cp target/release/polkadot-execute-worker ~/local_bridge_testing/bin/polkadot-execute-worker


---
# 3. Build substrate-relay binary
git clone https://github.com/paritytech/parity-bridges-common.git
cd parity-bridges-common

# checkout desired branch or use master:
# git checkout -b master --track origin/master
# `polkadot-staging` (recommended) is stabilized and compatible for Cumulus releases
# `master` is latest development
git checkout -b polkadot-staging --track origin/polkadot-staging

cargo build --release -p substrate-relay
cp target/release/substrate-relay ~/local_bridge_testing/bin/substrate-relay


---
# 4. Build cumulus polkadot-parachain binary
cd <polkadot-sdk-git-repo-dir>

cargo build --release -p polkadot-parachain-bin
cp target/release/polkadot-parachain ~/local_bridge_testing/bin/polkadot-parachain
cp target/release/polkadot-parachain ~/local_bridge_testing/bin/polkadot-parachain-asset-hub

How to test local Rococo <-> Westend bridge

Run Rococo/Westend chains with zombienet

cd <polkadot-sdk-git-repo-dir>

# Rococo + BridgeHubRococo + AssetHub for Rococo (mirroring Kusama)
POLKADOT_BINARY=~/local_bridge_testing/bin/polkadot \
POLKADOT_PARACHAIN_BINARY=~/local_bridge_testing/bin/polkadot-parachain \
	~/local_bridge_testing/bin/zombienet-linux --provider native spawn ./bridges/testing/environments/rococo-westend/bridge_hub_rococo_local_network.toml

cd <polkadot-sdk-git-repo-dir>

# Westend + BridgeHubWestend + AssetHub for Westend (mirroring Polkadot)
POLKADOT_BINARY=~/local_bridge_testing/bin/polkadot \
POLKADOT_PARACHAIN_BINARY=~/local_bridge_testing/bin/polkadot-parachain \
	~/local_bridge_testing/bin/zombienet-linux --provider native spawn ./bridges/testing/environments/rococo-westend/bridge_hub_westend_local_network.toml

Init bridge and run relayer between BridgeHubRococo and BridgeHubWestend

Accounts of BridgeHub parachains:

  • Bob is pallet owner of all bridge pallets

Run with script

cd <polkadot-sdk-git-repo-dir>

./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh run-relay

Check relay-chain headers relaying:

Check parachain headers relaying:

Initialize configuration for transfer asset over bridge (ROCs/WNDs)

This initialization does several things:

  • creates ForeignAssets for wrappedROCs/wrappedWNDs
  • drips SA for AssetHubRococo on AssetHubWestend (and vice versa) which holds reserved assets on source chains
cd <polkadot-sdk-git-repo-dir>

./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh init-asset-hub-rococo-local
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh init-bridge-hub-rococo-local
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh init-asset-hub-westend-local
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh init-bridge-hub-westend-local

Send messages - transfer asset over bridge (ROCs/WNDs)

Do reserve-backed transfers:

cd <polkadot-sdk-git-repo-dir>

# ROCs from Rococo's Asset Hub to Westend's.
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh reserve-transfer-assets-from-asset-hub-rococo-local

cd <polkadot-sdk-git-repo-dir>

# WNDs from Westend's Asset Hub to Rococo's.
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh reserve-transfer-assets-from-asset-hub-westend-local

Do reserve withdraw transfers: (when previous is finished)

cd <polkadot-sdk-git-repo-dir>

# wrappedWNDs from Rococo's Asset Hub to Westend's.
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh withdraw-reserve-assets-from-asset-hub-rococo-local

cd <polkadot-sdk-git-repo-dir>

# wrappedROCs from Westend's Asset Hub to Rococo's.
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh withdraw-reserve-assets-from-asset-hub-westend-local

Claim relayer's rewards on BridgeHubRococo and BridgeHubWestend

Accounts of BridgeHub parachains:

  • //Charlie is relayer account on BridgeHubRococo
  • //Charlie is relayer account on BridgeHubWestend
cd <polkadot-sdk-git-repo-dir>

# Claim rewards on BridgeHubWestend:
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh claim-rewards-bridge-hub-rococo-local

# Claim rewards on BridgeHubWestend:
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh claim-rewards-bridge-hub-westend-local

How to test local BridgeHubKusama/BridgeHubPolkadot

TODO: see # !!! READ HERE above
