Gavin Wood fd5f9292f5 FRAME: Create TransactionExtension as a replacement for SignedExtension (#2280)
Closes #2160

First part of [Extrinsic
Horizon](https://github.com/paritytech/polkadot-sdk/issues/2415)

Introduces a new trait `TransactionExtension` to replace
`SignedExtension`. Introduce the idea of transactions which obey the
runtime's extensions and have according Extension data (né Extra data)
yet do not have hard-coded signatures.

Deprecate the terminology of "Unsigned" when used for
transactions/extrinsics owing to there now being "proper" unsigned
transactions which obey the extension framework and "old-style" unsigned
which do not. Instead we have __*General*__ for the former and
__*Bare*__ for the latter. (Ultimately, the latter will be phased out as
a type of transaction, and Bare will only be used for Inherents.)

Types of extrinsic are now therefore:
- Bare (no hardcoded signature, no Extra data; used to be known as
"Unsigned")
- Bare transactions (deprecated): Gossiped, validated with
`ValidateUnsigned` (deprecated) and the `_bare_compat` bits of
`TransactionExtension` (deprecated).
  - Inherents: Not gossiped, validated with `ProvideInherent`.
- Extended (Extra data): Gossiped, validated via `TransactionExtension`.
  - Signed transactions (with a hardcoded signature).
  - General transactions (without a hardcoded signature).

`TransactionExtension` differs from `SignedExtension` because:
- A signature on the underlying transaction may validly not be present.
- It may alter the origin during validation.
- `pre_dispatch` is renamed to `prepare` and need not contain the checks
present in `validate`.
- `validate` and `prepare` is passed an `Origin` rather than a
`AccountId`.
- `validate` may pass arbitrary information into `prepare` via a new
user-specifiable type `Val`.
- `AdditionalSigned`/`additional_signed` is renamed to
`Implicit`/`implicit`. It is encoded *for the entire transaction* and
passed in to each extension as a new argument to `validate`. This
facilitates the ability of extensions to acts as underlying crypto.

There is a new `DispatchTransaction` trait which contains only default
function impls and is impl'ed for any `TransactionExtension` impler. It
provides several utility functions which reduce some of the tedium from
using `TransactionExtension` (indeed, none of its regular functions
should now need to be called directly).

Three transaction version discriminator ("versions") are now
permissible:
- 0b000000100: Bare (used to be called "Unsigned"): contains Signature
or Extra (extension data). After bare transactions are no longer
supported, this will strictly identify an Inherents only.
- 0b100000100: Old-school "Signed" Transaction: contains Signature and
Extra (extension data).
- 0b010000100: New-school "General" Transaction: contains Extra
(extension data), but no Signature.

For the New-school General Transaction, it becomes trivial for authors
to publish extensions to the mechanism for authorizing an Origin, e.g.
through new kinds of key-signing schemes, ZK proofs, pallet state,
mutations over pre-authenticated origins or any combination of the
above.

## Code Migration

### NOW: Getting it to build

Wrap your `SignedExtension`s in `AsTransactionExtension`. This should be
accompanied by renaming your aggregate type in line with the new
terminology. E.g. Before:

```rust
/// The SignedExtension to the basic transaction logic.
pub type SignedExtra = (
	/* snip */
	MySpecialSignedExtension,
);
/// Unchecked extrinsic type as expected by this runtime.
pub type UncheckedExtrinsic =
	generic::UncheckedExtrinsic<Address, RuntimeCall, Signature, SignedExtra>;
```

After:

```rust
/// The extension to the basic transaction logic.
pub type TxExtension = (
	/* snip */
	AsTransactionExtension<MySpecialSignedExtension>,
);
/// Unchecked extrinsic type as expected by this runtime.
pub type UncheckedExtrinsic =
	generic::UncheckedExtrinsic<Address, RuntimeCall, Signature, TxExtension>;
```

You'll also need to alter any transaction building logic to add a
`.into()` to make the conversion happen. E.g. Before:

```rust
fn construct_extrinsic(
		/* snip */
) -> UncheckedExtrinsic {
	let extra: SignedExtra = (
		/* snip */
		MySpecialSignedExtension::new(/* snip */),
	);
	let payload = SignedPayload::new(call.clone(), extra.clone()).unwrap();
	let signature = payload.using_encoded(|e| sender.sign(e));
	UncheckedExtrinsic::new_signed(
		/* snip */
		Signature::Sr25519(signature),
		extra,
	)
}
```

After:

```rust
fn construct_extrinsic(
		/* snip */
) -> UncheckedExtrinsic {
	let tx_ext: TxExtension = (
		/* snip */
		MySpecialSignedExtension::new(/* snip */).into(),
	);
	let payload = SignedPayload::new(call.clone(), tx_ext.clone()).unwrap();
	let signature = payload.using_encoded(|e| sender.sign(e));
	UncheckedExtrinsic::new_signed(
		/* snip */
		Signature::Sr25519(signature),
		tx_ext,
	)
}
```

### SOON: Migrating to `TransactionExtension`

Most `SignedExtension`s can be trivially converted to become a
`TransactionExtension`. There are a few things to know.

- Instead of a single trait like `SignedExtension`, you should now
implement two traits individually: `TransactionExtensionBase` and
`TransactionExtension`.
- Weights are now a thing and must be provided via the new function `fn
weight`.

#### `TransactionExtensionBase`

This trait takes care of anything which is not dependent on types
specific to your runtime, most notably `Call`.

- `AdditionalSigned`/`additional_signed` is renamed to
`Implicit`/`implicit`.
- Weight must be returned by implementing the `weight` function. If your
extension is associated with a pallet, you'll probably want to do this
via the pallet's existing benchmarking infrastructure.

#### `TransactionExtension`

Generally:
- `pre_dispatch` is now `prepare` and you *should not reexecute the
`validate` functionality in there*!
- You don't get an account ID any more; you get an origin instead. If
you need to presume an account ID, then you can use the trait function
`AsSystemOriginSigner::as_system_origin_signer`.
- You get an additional ticket, similar to `Pre`, called `Val`. This
defines data which is passed from `validate` into `prepare`. This is
important since you should not be duplicating logic from `validate` to
`prepare`, you need a way of passing your working from the former into
the latter. This is it.
- This trait takes two type parameters: `Call` and `Context`. `Call` is
the runtime call type which used to be an associated type; you can just
move it to become a type parameter for your trait impl. `Context` is not
currently used and you can safely implement over it as an unbounded
type.
- There's no `AccountId` associated type any more. Just remove it.

Regarding `validate`:
- You get three new parameters in `validate`; all can be ignored when
migrating from `SignedExtension`.
- `validate` returns a tuple on success; the second item in the tuple is
the new ticket type `Self::Val` which gets passed in to `prepare`. If
you use any information extracted during `validate` (off-chain and
on-chain, non-mutating) in `prepare` (on-chain, mutating) then you can
pass it through with this. For the tuple's last item, just return the
`origin` argument.

Regarding `prepare`:
- This is renamed from `pre_dispatch`, but there is one change:
- FUNCTIONALITY TO VALIDATE THE TRANSACTION NEED NOT BE DUPLICATED FROM
`validate`!!
- (This is different to `SignedExtension` which was required to run the
same checks in `pre_dispatch` as in `validate`.)

Regarding `post_dispatch`:
- Since there are no unsigned transactions handled by
`TransactionExtension`, `Pre` is always defined, so the first parameter
is `Self::Pre` rather than `Option<Self::Pre>`.

If you make use of `SignedExtension::validate_unsigned` or
`SignedExtension::pre_dispatch_unsigned`, then:
- Just use the regular versions of these functions instead.
- Have your logic execute in the case that the `origin` is `None`.
- Ensure your transaction creation logic creates a General Transaction
rather than a Bare Transaction; this means having to include all
`TransactionExtension`s' data.
- `ValidateUnsigned` can still be used (for now) if you need to be able
to construct transactions which contain none of the extension data,
however these will be phased out in stage 2 of the Transactions Horizon,
so you should consider moving to an extension-centric design.

## TODO

- [x] Introduce `CheckSignature` impl of `TransactionExtension` to
ensure it's possible to have crypto be done wholly in a
`TransactionExtension`.
- [x] Deprecate `SignedExtension` and move all uses in codebase to
`TransactionExtension`.
  - [x] `ChargeTransactionPayment`
  - [x] `DummyExtension`
  - [x] `ChargeAssetTxPayment` (asset-tx-payment)
  - [x] `ChargeAssetTxPayment` (asset-conversion-tx-payment)
  - [x] `CheckWeight`
  - [x] `CheckTxVersion`
  - [x] `CheckSpecVersion`
  - [x] `CheckNonce`
  - [x] `CheckNonZeroSender`
  - [x] `CheckMortality`
  - [x] `CheckGenesis`
  - [x] `CheckOnlySudoAccount`
  - [x] `WatchDummy`
  - [x] `PrevalidateAttests`
  - [x] `GenericSignedExtension`
  - [x] `SignedExtension` (chain-polkadot-bulletin)
  - [x] `RefundSignedExtensionAdapter`
- [x] Implement `fn weight` across the board.
- [ ] Go through all pre-existing extensions which assume an account
signer and explicitly handle the possibility of another kind of origin.
- [x] `CheckNonce` should probably succeed in the case of a non-account
origin.
- [x] `CheckNonZeroSender` should succeed in the case of a non-account
origin.
- [x] `ChargeTransactionPayment` and family should fail in the case of a
non-account origin.
  - [ ]
- [x] Fix any broken tests.

---------

Signed-off-by: georgepisaltu <george.pisaltu@parity.io>
Signed-off-by: Alexandru Vasile <alexandru.vasile@parity.io>
Signed-off-by: dependabot[bot] <support@github.com>
Signed-off-by: Oliver Tale-Yazdi <oliver.tale-yazdi@parity.io>
Signed-off-by: Alexandru Gheorghe <alexandru.gheorghe@parity.io>
Signed-off-by: Andrei Sandu <andrei-mihail@parity.io>
Co-authored-by: Nikhil Gupta <17176722+gupnik@users.noreply.github.com>
Co-authored-by: georgepisaltu <52418509+georgepisaltu@users.noreply.github.com>
Co-authored-by: Chevdor <chevdor@users.noreply.github.com>
Co-authored-by: Bastian Köcher <git@kchr.de>
Co-authored-by: Maciej <maciej.zyszkiewicz@parity.io>
Co-authored-by: Javier Viola <javier@parity.io>
Co-authored-by: Marcin S. <marcin@realemail.net>
Co-authored-by: Tsvetomir Dimitrov <tsvetomir@parity.io>
Co-authored-by: Javier Bullrich <javier@bullrich.dev>
Co-authored-by: Koute <koute@users.noreply.github.com>
Co-authored-by: Adrian Catangiu <adrian@parity.io>
Co-authored-by: Vladimir Istyufeev <vladimir@parity.io>
Co-authored-by: Ross Bulat <ross@parity.io>
Co-authored-by: Gonçalo Pestana <g6pestana@gmail.com>
Co-authored-by: Liam Aharon <liam.aharon@hotmail.com>
Co-authored-by: Svyatoslav Nikolsky <svyatonik@gmail.com>
Co-authored-by: André Silva <123550+andresilva@users.noreply.github.com>
Co-authored-by: Oliver Tale-Yazdi <oliver.tale-yazdi@parity.io>
Co-authored-by: s0me0ne-unkn0wn <48632512+s0me0ne-unkn0wn@users.noreply.github.com>
Co-authored-by: ordian <write@reusable.software>
Co-authored-by: Sebastian Kunert <skunert49@gmail.com>
Co-authored-by: Aaro Altonen <48052676+altonen@users.noreply.github.com>
Co-authored-by: Dmitry Markin <dmitry@markin.tech>
Co-authored-by: Alexandru Vasile <60601340+lexnv@users.noreply.github.com>
Co-authored-by: Alexander Samusev <41779041+alvicsam@users.noreply.github.com>
Co-authored-by: Julian Eager <eagr@tutanota.com>
Co-authored-by: Michal Kucharczyk <1728078+michalkucharczyk@users.noreply.github.com>
Co-authored-by: Davide Galassi <davxy@datawok.net>
Co-authored-by: Dónal Murray <donal.murray@parity.io>
Co-authored-by: yjh <yjh465402634@gmail.com>
Co-authored-by: Tom Mi <tommi@niemi.lol>
Co-authored-by: dependabot[bot] <49699333+dependabot[bot]@users.noreply.github.com>
Co-authored-by: Will | Paradox | ParaNodes.io <79228812+paradox-tt@users.noreply.github.com>
Co-authored-by: Bastian Köcher <info@kchr.de>
Co-authored-by: Joshy Orndorff <JoshOrndorff@users.noreply.github.com>
Co-authored-by: Joshy Orndorff <git-user-email.h0ly5@simplelogin.com>
Co-authored-by: PG Herveou <pgherveou@gmail.com>
Co-authored-by: Alexander Theißen <alex.theissen@me.com>
Co-authored-by: Kian Paimani <5588131+kianenigma@users.noreply.github.com>
Co-authored-by: Juan Girini <juangirini@gmail.com>
Co-authored-by: bader y <ibnbassem@gmail.com>
Co-authored-by: James Wilson <james@jsdw.me>
Co-authored-by: joe petrowski <25483142+joepetrowski@users.noreply.github.com>
Co-authored-by: asynchronous rob <rphmeier@gmail.com>
Co-authored-by: Parth <desaiparth08@gmail.com>
Co-authored-by: Andrew Jones <ascjones@gmail.com>
Co-authored-by: Jonathan Udd <jonathan@dwellir.com>
Co-authored-by: Serban Iorga <serban@parity.io>
Co-authored-by: Egor_P <egor@parity.io>
Co-authored-by: Branislav Kontur <bkontur@gmail.com>
Co-authored-by: Evgeny Snitko <evgeny@parity.io>
Co-authored-by: Just van Stam <vstam1@users.noreply.github.com>
Co-authored-by: Francisco Aguirre <franciscoaguirreperez@gmail.com>
Co-authored-by: gupnik <nikhilgupta.iitk@gmail.com>
Co-authored-by: dzmitry-lahoda <dzmitry@lahoda.pro>
Co-authored-by: zhiqiangxu <652732310@qq.com>
Co-authored-by: Nazar Mokrynskyi <nazar@mokrynskyi.com>
Co-authored-by: Anwesh <anweshknayak@gmail.com>
Co-authored-by: cheme <emericchevalier.pro@gmail.com>
Co-authored-by: Sam Johnson <sam@durosoft.com>
Co-authored-by: kianenigma <kian@parity.io>
Co-authored-by: Jegor Sidorenko <5252494+jsidorenko@users.noreply.github.com>
Co-authored-by: Muharem <ismailov.m.h@gmail.com>
Co-authored-by: joepetrowski <joe@parity.io>
Co-authored-by: Alexandru Gheorghe <49718502+alexggh@users.noreply.github.com>
Co-authored-by: Gabriel Facco de Arruda <arrudagates@gmail.com>
Co-authored-by: Squirrel <gilescope@gmail.com>
Co-authored-by: Andrei Sandu <54316454+sandreim@users.noreply.github.com>
Co-authored-by: georgepisaltu <george.pisaltu@parity.io>
Co-authored-by: command-bot <>
2024-03-04 19:12:43 +00:00
..
bridge-hub-rococo
FRAME: Create TransactionExtension as a replacement for SignedExtension (#2280)
2024-03-04 19:12:43 +00:00
bridge-hub-westend
FRAME: Create TransactionExtension as a replacement for SignedExtension (#2280)
2024-03-04 19:12:43 +00:00
common
Removes Snowbridge parachain directory (#3186)
2024-02-02 17:08:36 +00:00
docs
BridgeHubKusama - initial setup - (chain_spec + basic runtime without any bridging pallets) (#1764)
2022-12-02 14:06:39 +01:00
test-utils
Snowbridge - Test pallet order (#3381)
2024-02-21 14:48:40 +00:00
README.md
Bridge zombienet tests - move all test scripts to the same folder (#3333)
2024-02-15 12:56:58 +00:00

README.md

Bridge-hub Parachains

BridgeHub(s) are system parachains that will house trustless bridges from the local ecosystem to others. The current trustless bridges planned for the BridgeHub(s) are:

  • BridgeHubPolkadot system parachain:
    1. Polkadot <-> Kusama bridge
    2. Polkadot <-> Ethereum bridge (Snowbridge)
  • BridgeHubKusama system parachain:
    1. Kusama <-> Polkadot bridge

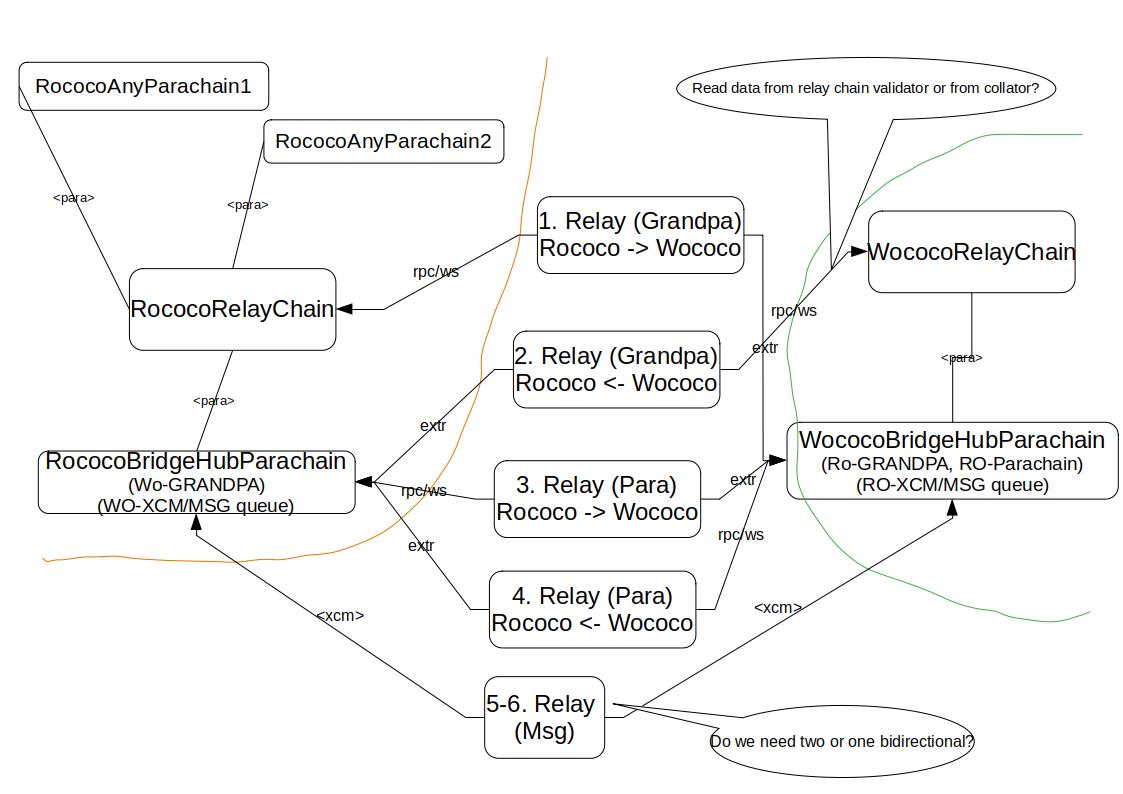

    2. Kusama <-> Ethereum bridge The high-level responsibilities of each bridge living on BridgeHub:
  • sync finality proofs between relay chains (or equivalent)
  • sync finality proofs between BridgeHub parachains
  • pass (XCM) messages between different BridgeHub parachains

Requirements for local run/testing

# Prepare empty directory for testing
mkdir -p ~/local_bridge_testing/bin
mkdir -p ~/local_bridge_testing/logs

---
# 1. Install zombienet
Go to: https://github.com/paritytech/zombienet/releases
Copy the apropriate binary (zombienet-linux) from the latest release to ~/local_bridge_testing/bin


---
# 2. Build polkadot binary

We need polkadot binary with "fast-runtime" feature:

cd <polkadot-sdk-git-repo-dir>
cargo build --release --features fast-runtime --bin polkadot
cp target/release/polkadot ~/local_bridge_testing/bin/polkadot

cargo build --release --features fast-runtime --bin polkadot-prepare-worker
cp target/release/polkadot-prepare-worker ~/local_bridge_testing/bin/polkadot-prepare-worker

cargo build --release --features fast-runtime --bin polkadot-execute-worker
cp target/release/polkadot-execute-worker ~/local_bridge_testing/bin/polkadot-execute-worker


---
# 3. Build substrate-relay binary
git clone https://github.com/paritytech/parity-bridges-common.git
cd parity-bridges-common

# checkout desired branch or use master:
# git checkout -b master --track origin/master
# `polkadot-staging` (recommended) is stabilized and compatible for Cumulus releases
# `master` is latest development
git checkout -b polkadot-staging --track origin/polkadot-staging

cargo build --release -p substrate-relay
cp target/release/substrate-relay ~/local_bridge_testing/bin/substrate-relay


---
# 4. Build cumulus polkadot-parachain binary
cd <polkadot-sdk-git-repo-dir>

cargo build --release -p polkadot-parachain-bin
cp target/release/polkadot-parachain ~/local_bridge_testing/bin/polkadot-parachain
cp target/release/polkadot-parachain ~/local_bridge_testing/bin/polkadot-parachain-asset-hub

How to test local Rococo <-> Westend bridge

Run Rococo/Westend chains with zombienet

cd <polkadot-sdk-git-repo-dir>

# Rococo + BridgeHubRococo + AssetHub for Rococo (mirroring Kusama)
POLKADOT_BINARY=~/local_bridge_testing/bin/polkadot \
POLKADOT_PARACHAIN_BINARY=~/local_bridge_testing/bin/polkadot-parachain \
	~/local_bridge_testing/bin/zombienet-linux --provider native spawn ./bridges/testing/environments/rococo-westend/bridge_hub_rococo_local_network.toml

cd <polkadot-sdk-git-repo-dir>

# Westend + BridgeHubWestend + AssetHub for Westend (mirroring Polkadot)
POLKADOT_BINARY=~/local_bridge_testing/bin/polkadot \
POLKADOT_PARACHAIN_BINARY=~/local_bridge_testing/bin/polkadot-parachain \
	~/local_bridge_testing/bin/zombienet-linux --provider native spawn ./bridges/testing/environments/rococo-westend/bridge_hub_westend_local_network.toml

Init bridge and run relayer between BridgeHubRococo and BridgeHubWestend

Accounts of BridgeHub parachains:

  • Bob is pallet owner of all bridge pallets

Run with script

cd <polkadot-sdk-git-repo-dir>

./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh run-relay

Check relay-chain headers relaying:

Check parachain headers relaying:

Initialize configuration for transfer asset over bridge (ROCs/WNDs)

This initialization does several things:

  • creates ForeignAssets for wrappedROCs/wrappedWNDs
  • drips SA for AssetHubRococo on AssetHubWestend (and vice versa) which holds reserved assets on source chains
cd <polkadot-sdk-git-repo-dir>

./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh init-asset-hub-rococo-local
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh init-bridge-hub-rococo-local
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh init-asset-hub-westend-local
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh init-bridge-hub-westend-local

Send messages - transfer asset over bridge (ROCs/WNDs)

Do reserve-backed transfers:

cd <polkadot-sdk-git-repo-dir>

# ROCs from Rococo's Asset Hub to Westend's.
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh reserve-transfer-assets-from-asset-hub-rococo-local

cd <polkadot-sdk-git-repo-dir>

# WNDs from Westend's Asset Hub to Rococo's.
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh reserve-transfer-assets-from-asset-hub-westend-local

Do reserve withdraw transfers: (when previous is finished)

cd <polkadot-sdk-git-repo-dir>

# wrappedWNDs from Rococo's Asset Hub to Westend's.
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh withdraw-reserve-assets-from-asset-hub-rococo-local

cd <polkadot-sdk-git-repo-dir>

# wrappedROCs from Westend's Asset Hub to Rococo's.
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh withdraw-reserve-assets-from-asset-hub-westend-local

Claim relayer's rewards on BridgeHubRococo and BridgeHubWestend

Accounts of BridgeHub parachains:

  • //Charlie is relayer account on BridgeHubRococo
  • //Charlie is relayer account on BridgeHubWestend
cd <polkadot-sdk-git-repo-dir>

# Claim rewards on BridgeHubWestend:
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh claim-rewards-bridge-hub-rococo-local

# Claim rewards on BridgeHubWestend:
./bridges/testing/environments/rococo-westend/bridges_rococo_westend.sh claim-rewards-bridge-hub-westend-local

How to test local BridgeHubKusama/BridgeHubPolkadot

TODO: see # !!! READ HERE above

Reference in New Issue View Git Blame Copy Permalink
